Polyurethane Foam Injection in San Antonio, TX
Lift sunken concrete with lightweight, fast-curing foam that stabilizes weak soils and restores your slabs in as little as one hour.
How Polyurethane Foam Injection Works
Polyurethane foam injection is the modern alternative to mudjacking. Instead of pumping hundreds of pounds of cement slurry beneath a settled slab, we inject a high-density polymer foam through penny-sized holes drilled into the concrete. The foam expands to fill voids, compacts loose soil, and lifts the slab back to its proper elevation. Because the material weighs roughly 2 pounds per cubic foot compared to about 100 pounds per cubic foot for mudjacking slurry, it places almost no additional load on soil that is already struggling to support the concrete above it.
The entire process is fast. Once the injection ports are drilled, foam is pumped through each hole in a controlled sequence. The expansion begins within seconds and the material reaches roughly 90 percent of its final strength in about 15 minutes. Most residential jobs are finished within a few hours, and you can walk on the concrete immediately after we finish. Driveways and garage floors are typically ready for vehicle traffic within an hour.
Foam injection works on nearly any concrete flatwork surface. Interior slabs, garage floors, driveways, sidewalks, patios, pool decks, and even warehouse floors are all good candidates. The small injection holes are patched and barely visible once the work is done, leaving your concrete looking clean and intact. For San Antonio homeowners dealing with settled slabs caused by our reactive clay soils, foam injection offers a reliable repair that will not add weight to an already stressed foundation.
Signs You May Need Foam Injection
Concrete settling often starts slowly, but the damage accelerates if left unaddressed. Watch for these common signs around your San Antonio property.
Sunken Interior Slabs
If the floors inside your home feel uneven or you notice low spots near walls or under carpet, the slab beneath may have settled. This is common in San Antonio homes built on expansive Houston Black Clay, which shrinks during dry spells and allows voids to form beneath the slab.
Settled Driveways
A driveway that has dropped near the garage or developed a noticeable lip between panels is more than a cosmetic issue. It creates a trip hazard and allows water to pool and flow toward your foundation. Foam injection can lift those sections back to grade without tearing out and replacing the concrete.
Sinking Pool Decks
Pool decks settle when the backfill soil around the pool shell compacts or washes away. The result is a gap between the coping and the deck surface, along with uneven footing around the pool. Foam injection fills the voids and lifts the deck without disrupting your pool or landscaping.
Garage Floor Gaps
When a garage floor drops away from the walls or you see daylight under the bottom plate of the wall framing, the slab has settled. This often happens because the fill soil beneath the garage was not compacted properly during construction. Lightweight foam can raise the slab without putting stress on the walls above.
Water Draining Toward Your Foundation
Concrete flatwork is designed to slope water away from the home. When sections settle, that drainage reverses. Water begins flowing toward the foundation, increasing the risk of moisture intrusion and accelerating soil movement beneath the house. Restoring proper slope through foam injection protects the entire structure.
The Foam Injection Process

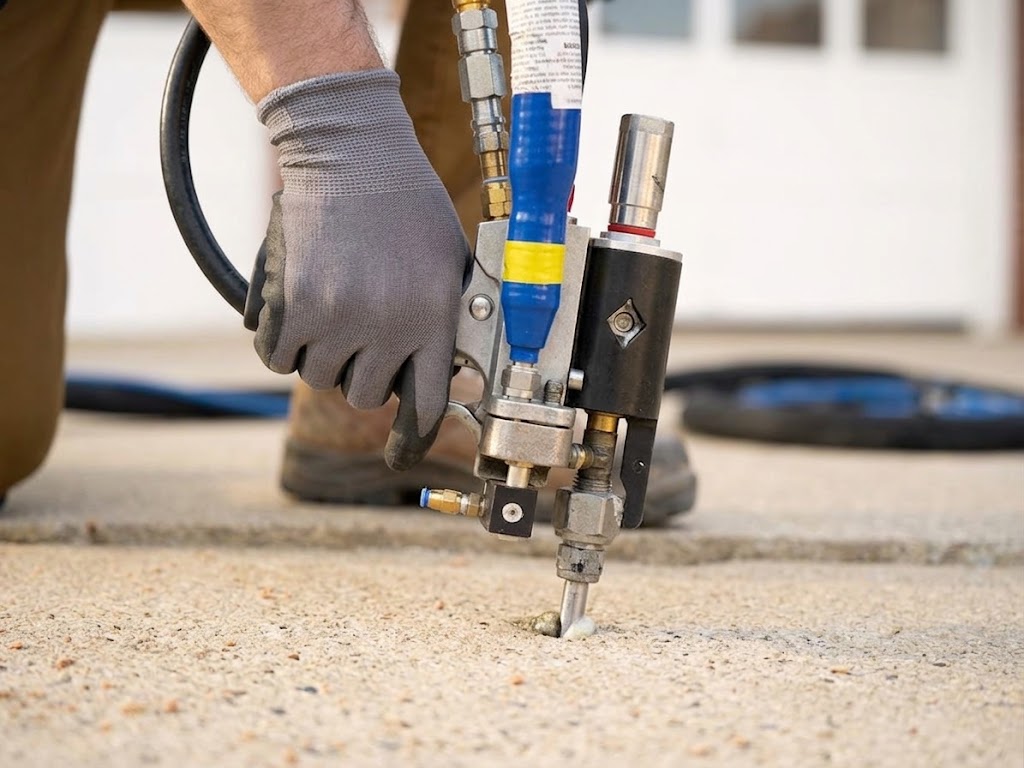

Drill Injection Holes
We drill small, penny-sized holes through the concrete surface at strategic points. These entry points are placed based on the pattern of settling and the size of the slab, ensuring even lift across the entire area.
Inject Polyurethane Foam
High-density polyurethane foam is pumped through each injection port using specialized equipment. The foam flows into voids and loose soil beneath the slab, reaching areas that traditional methods often miss.
Foam Expands and Lifts
Within seconds of injection, the foam expands to many times its original volume. This expansion fills voids, compacts surrounding soil, and generates the controlled pressure needed to raise the concrete back to grade. We monitor elevation with laser levels throughout the process.
Holes Are Filled and Finished
Once the slab is at the correct elevation, we patch each injection hole with a concrete plug. The repairs are small and blend into the existing surface. Most homeowners can barely spot them once the work is complete.
Why San Antonio Properties Need Foam Injection
San Antonio sits on some of the most challenging soil in Texas. Much of the city, particularly the areas south and east of downtown, rests on Houston Black Clay. This heavy, expansive soil absorbs water and swells during the rainy season, then shrinks and cracks during the dry months. That constant cycle of expansion and contraction creates voids beneath concrete slabs, causing them to settle unevenly over time. Lightweight polyurethane foam is especially well suited for these conditions because it fills those voids without adding the heavy weight that mudjacking slurry would.
In neighborhoods like Alamo Heights and Terrell Hills, where many homes date to the 1940s through 1970s, decades of soil movement have taken their toll on driveways, walkways, and interior slabs. Stone Oak and the developments along Loop 1604 face different but related challenges. The soils in those areas can include a mix of caliche and clay, and newer construction sometimes involves fill material that was not fully compacted before concrete was poured. Foam injection works in both scenarios because it adapts to the void structure beneath the slab rather than requiring a single material consistency.
San Antonio's climate makes things worse. Summer temperatures regularly climb above 100 degrees, and extended dry periods pull moisture from the soil rapidly. When the fall rains arrive, the ground re-expands. This repeated movement stresses concrete year after year. Foam injection addresses the immediate settling while providing long-term support because the cured foam does not absorb water, compress, or break down. It remains stable through every wet-dry cycle, protecting your concrete for years to come.
Polyurethane Foam Injection FAQ
Mudjacking pumps a heavy cement slurry beneath the slab, adding roughly 100 pounds per cubic foot to soil that is already struggling. Polyurethane foam weighs about 2 pounds per cubic foot, so it lifts the concrete without overloading the ground. Foam also cures in about 15 minutes, while mudjacking can take a full day or longer to set. The injection holes for foam are penny-sized compared to the golf-ball-sized holes mudjacking requires.
Yes. The foam we use is inert once cured. It does not leach chemicals into the soil or groundwater and will not break down over time. It is approved for use near water features, landscaping, and in environmentally sensitive areas. Many municipal and commercial projects specify polyurethane foam for this reason.
Polyurethane foam is a closed-cell material that does not absorb water, rot, or compress under load. When injected beneath a properly maintained slab, it can last the lifetime of the concrete itself. Most manufacturers rate the material for decades of reliable service. Because it does not wash out or deteriorate, it holds up far longer than traditional mudjacking material in San Antonio's wet-dry climate.
Foam reaches about 90 percent of its full strength within 15 minutes of injection. In most cases, you can walk on the slab immediately and drive on it within an hour. That same-day turnaround is one of the biggest advantages over traditional mudjacking, which often requires 24 to 48 hours before the repaired surface can handle weight.
Foam injection is designed to lift and stabilize concrete flatwork such as driveways, sidewalks, patios, and interior slabs. It is not a substitute for structural foundation repair involving piers or other deep-support systems. However, it can address minor interior slab settling and is often used alongside foundation work to re-level floors after pier installation. If we suspect a structural foundation issue during our inspection, we will let you know and recommend the appropriate specialist.
